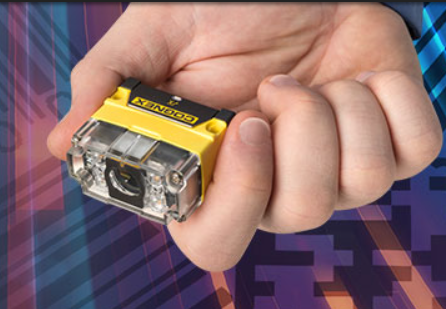

COGNEX 康耐视 DataMan 72 Q 固定式读码器

13249819590

DataMan 70 系列型号	72 S	72 L	72 QL	72 Q
1D and Stacked Codes	■	■	■	■
Omnidirectional 1D barcode reading	■		■	■
Label-based 2D Codes	■			■
Algorithms	1DMax HotBars IDQuick	1DMax HotBars		1DMax HotBars IDQuick
Image Resolution	1280 x 960 global shutter
Image Sensor	1/3" CMOS
Acquisition	2 fps	60 fps
Max Decode Rate	2/second	45/second
Aimer	2 green LEDs
Lens Options	6.2mm f 7.0, 3 position lens with standard or long range focus setting or 16mm f 7.0 manual focus lens
Lighting	4 independently controlled red LEDs (6.2mm lens) or 4 high-power LEDs (16mm lens only)
Discrete I/O	USB: N/A Optional serial accessory cable allows 1IN (trigger only) / 1OUT
Status Output	Status LED on reader indicates: Green (good read) or red (no read)
Power	5 VDC–24 VDC or USB Bus powered, 2.5W
Communication	Integrated USB-C (RS-232 with accessory cable) or industrial Ethernet protocols with communication module
Material	Plastic (polycarbonate)
Dimensions	42.4 mm x 22.2 mm x 38.7 mm
Weight	42 g without cable
Operating Temperature	0 °C–40 °C
Storage Temperature	10 °C–60 °C
Humidity	<95%, non-condensing
Protection	IP65
ROHS Certified	Yes
Approvals (CE, Safety, FCC)	Yes
Operating Systems	Windows^® 7 and 10
